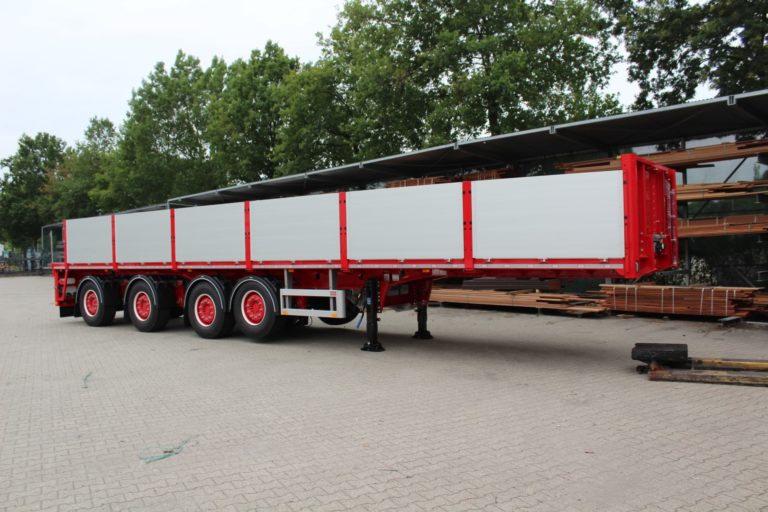

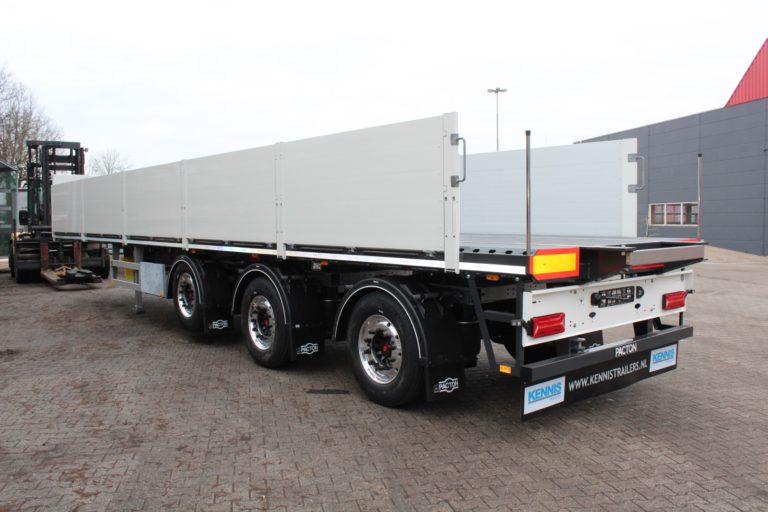

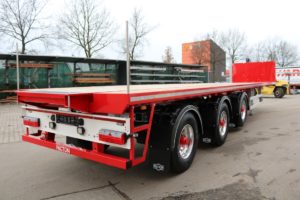

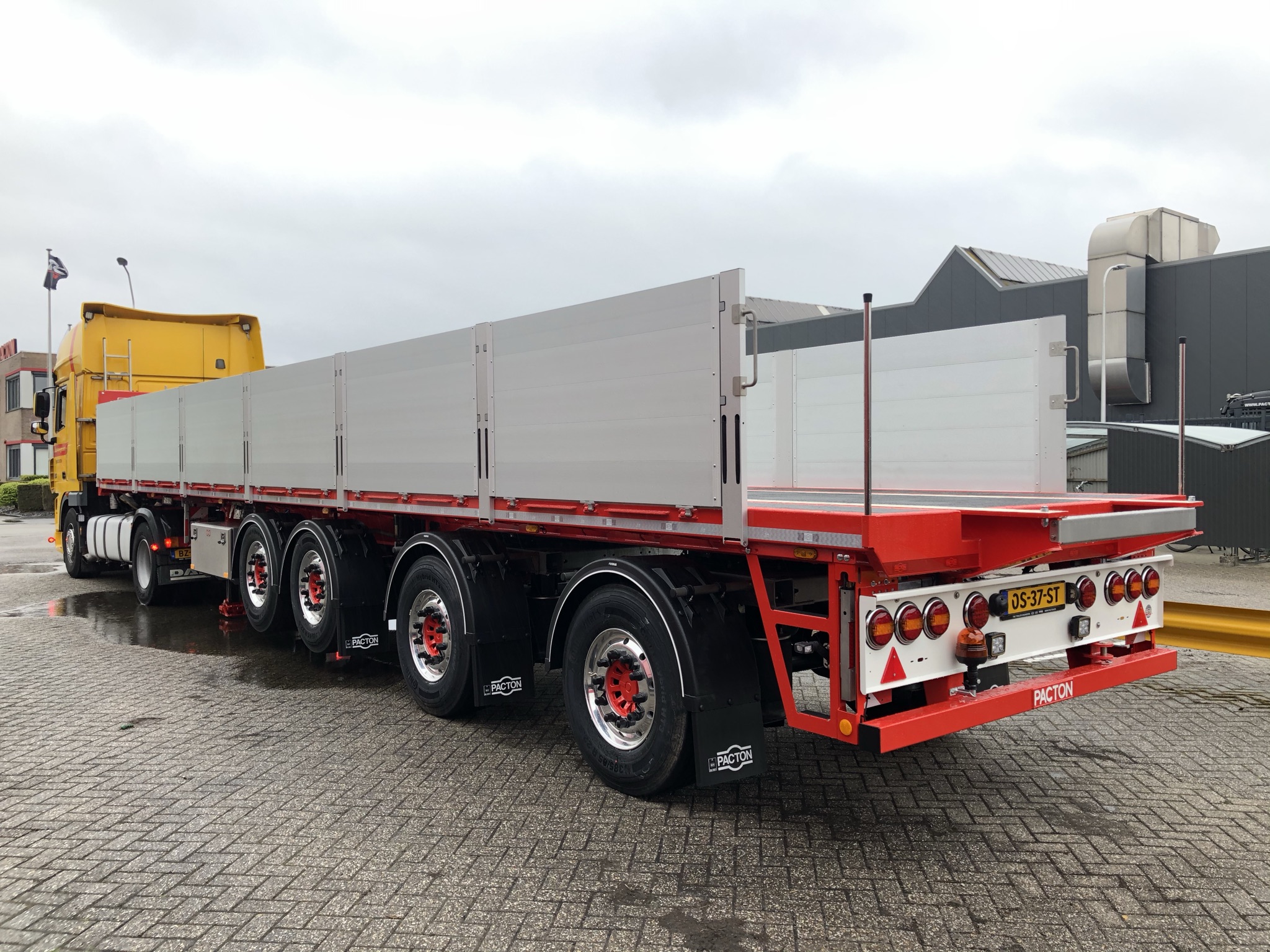

CRANE TRAILER L-execution

An important concept of the Pacton crane trailers is the “L” (light) version.  With this trailer a weight saving of about 10% is achievable.  A lower own weight is increasingly important for the energy balance.  Less CO² emission or higher load capacity are important choices for the entrepreneur. The L-execution is executed with a single rod mechanical steering and is available up to and including 24 tm crane capacity.

View photos

Specifications of the CRANE TRAILER L-execution
  • 10% weight saving
  • Single rod forced steering
  • Up to and including 24 tm crane capacity
5.500 - 8.300 KG Weight
15.000 KG Clutch pressure
20.000 - 36.000 KG Axle load

Specifications

  • 10% weight saving
  • Single rod forced steering
  • Up to and including 24 tm crane capacity
  • 2 to 4 axles possible
  • Length 8 – 13,5 metres
  • Different axle configurations
  • Standard aluminium rims
  • TÜV certified construction
  • TÜV floor possible
  • Standard LED lighting
  • Choice of diverse cargo clamping systems
